Temporary anchor bolt system : |
|
|
Soil stabilization with nailing method is very common in urban areas in which is not feasible to use traditional inefficient methods. However, this method is applicable only in cases where the soil quality is appropriate in terms of adhesion and resistance parameters. If the soil is loose or poor in terms of quality, it is not sufficient to carry out nailing and anchorage operations in the classical ways, which is very costly and sometimes impossible. In this case, the best alternative is to use self-drilling Hollow Bars in which drilling and grouting operations take place in one single step. This method benefits from a rotary injection adapter which leads to a faster operation with lower cost and best possible results. click on each part's icon to open specifications table |
|
|
|
|
|
|
|
|
|
|

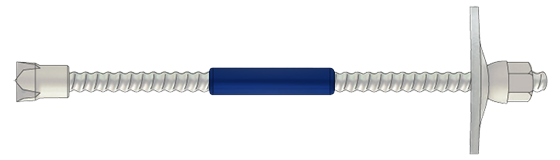

Outer Dia.
mm |
Inner Dia.
mm |
Ultimate Load
KN |
Yield Load
KN |
|

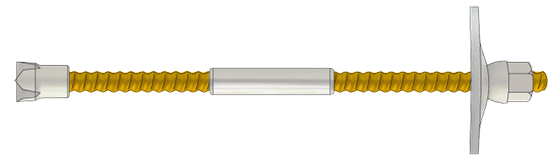

R25N |
25 |
12 |
200 |
150 |
R32L |
32 |
20 |
210 |
160 |
R32N/1 |
32 |
20 |
280 |
230 |
R32N |
32 |
18 |
280 |
230 |
R32S/1 |
32 |
18 |
360 |
280 |
R32S |
32 |
14.5 |
360 |
280 |
R38N/1 |
38 |
22.5 |
500 |
400 |
R38N/2 |
38 |
21 |
500 |
400 |
R38N |
38 |
19 |
500 |
400 |
R38S/1 |
38 |
18 |
550 |
430 |
R51L/1 |
51 |
37.5 |
550 |
450 |
R51L |
51 |
36 |
550 |
450 |
R51N/1 |
51 |
34 |
800 |
630 |
R51N |
51 |
32 |
800 |
630 |
|
|
|
|
|
|
|
Outer Dia.
mm |
Length
mm |
|
R25N |
36 |
150 |
R32L |
42 |
145 |
R32N |
42 |
160 |
R32S |
42 |
190 |
R38N |
51 |
220 |
R51L/1 |
63 |
140 |
R51L |
63 |
170 |
R51N/1 |
63 |
200 |
R51N |
63 |
220 |
|
|
|
|
|
|
|

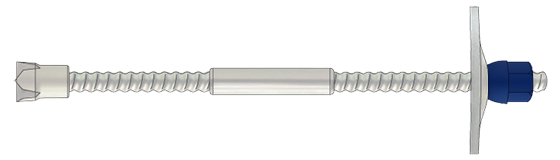

Key Size
mm |
Length
mm |
|
R25N |
41 |
35 |
R32S |
46 |
45 |
R32S |
46 |
65 |
R38N |
50 |
50 |
R38N |
50 |
60 |
|
|
|
|
|
|
|

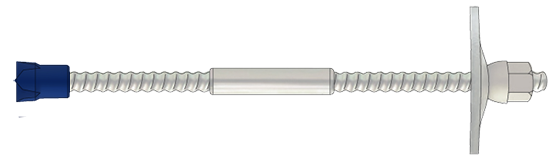

R25 |
R32 |
R38 |
R51 |
|
EX |
R25/42 - R25/51 |
R32/51 - R32/76 |
R38/76 - R38/90 R38/100 |
R51/100 - R51/110 R51/115 - R51/130 |
EXX |
R25/42 - R25/51 |
R32/51 - R32/76 |
R38/76 - R38/90 |
R51/90 - R51/100 R51/115 |
ES |
R25/42 - R25/51 |
R32/51 - R32/76 |
R38/76 - R38/90 |
R51/100 - R51/115 |
ESS |
R25/42 - R25/51 |
R32/51 - R32/76 |
R38/76 - R38/90 R38/115 |
R51/76 - R51/100 R51/115 - R51/130 R51/150 |
|
|
|
|
|
|
|

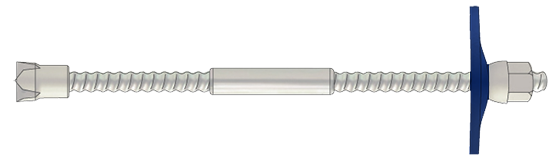

Dimensions
mm |
Thickness
mm |
Hole Dia.
mm |
|
R25N |
150x150 |
8 |
30 |
R25N |
200x200 |
10 |
32 |
R32L |
150x150 |
8 |
35 |
R32N |
200x200 |
8 |
35 |
R32N |
200x200 |
10 |
35 |
R32S |
200x200 |
10 |
35 |
R32S |
200x200 |
12 |
35 |
R38N |
200x200 |
12 |
41 |
R38N |
150x150 |
8 |
41 |
|
|
|
|
|
Injection Adaptor : |
|
In order to achieve the optimum stabilization and compliance with design standards, a special rotary injection adapter is used for self-drilling hollow bars. Using this tool, injection and drilling operations are carried out in one single step. This saves time and energy and leads to execute the best possible injection process. |
|
|
|
|
