Geotechnical systems with TITAN micropiles

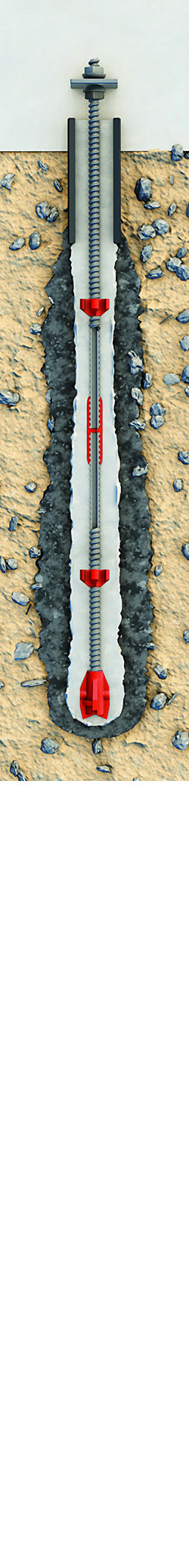

The heart of the system is the self-drilling TITAN micropile, which can be used as a ground improvement measure. Ground improvement by way of the interlocking body of grout enables tension, compression and cyclic loads to be transferred to the in situ soil. TITAN micropiles are covered by National Technical Approval Z-34.14-209 issued by the DIBt. This is the only tubular grouted pile system that can also be used for permanent applications of 100+ years. see more

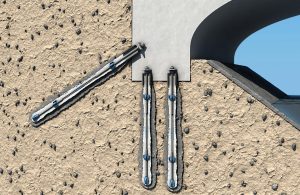

FOundations and underpinning – with TITAN micropiles
TITAN micropiles transfer tension, compression and cyclic fluctuating and reversed loads to loadbearing soil strata according to DIN EN 14199. see more
- Little settlement
- Can also be installed with compact, lightweight plant
- Low-vibration method that does not damage existing buildings
- Ideal on confined sites
- Permanent solution for 100+ year

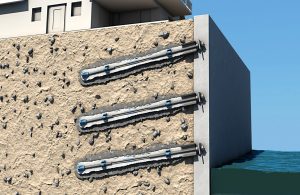

ANCHORAGES – The economic alternative to ground anchors
TITAN micropiles can carry tension loads without prestressing and are suitable for temporary and permanent applications (100+ years). Monitoring is unnecessary. see more

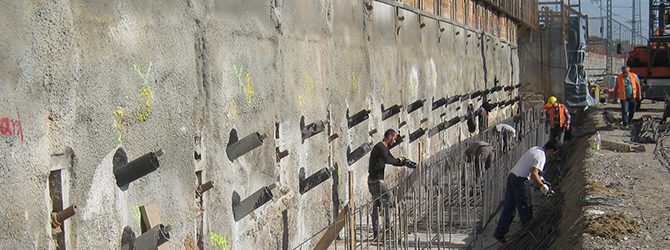

TITAN micropiles are installed to anchor sheet piling, retaining walls or excavation shoring, e.g. for
- flood defence walls, quayside structures and locks
- edge beams, historic masonry and gabion walls
- bearing pile, bored cast-in-place and diaphragm walls

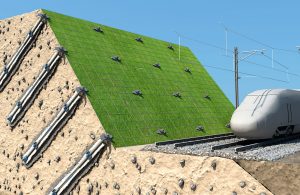

SOIL NAILING – Self-drilling reinforcing element to DIN EN 14490
TITAN micropiles can be used as self-drilling reinforcing elements for nailing to DIN EN 14490. The hollow steel bars are installed with drilling and flushing fluid and subsequently grouted with a cement suspension in a dynamic process. These create a monolithic composite element together with the surrounding soil and thus function as a ground improvement measure. see more
The TITAN system ensures permanent corrosion protection and is approved for applications lasting 100+ years.

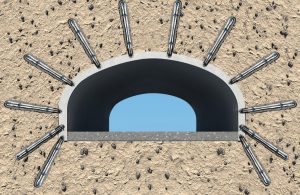

TUNNELLING & MINING – ONE SELF-DRILLING SYSTEM – MANY APPLICATIONS
The TITAN system is ideal for all kinds of temporary and permanent stabilisation solutions in tunnelling and mining projects. see more
- Drilling and installation is one operation
- Especially advantageous in rocks/soils with low cohesion and in unstable boreholes
- Borehole stabilisation with cement slurry (optional)
- Dynamic grouting during drilling (optional)
- Grouting assured over full depth of borehole
- No need to extract drill strings
